Supports are hot dip galvanized as a rust preventative, and can also be coated with electrostatic powder made of
Polyester Resin according to customer needs.
Pipe processing such as curving and attaching to a base is also available.
Our Electrostatic powder coating materials are made of extremely fine resin turned into paint and is very adhesive,
resulting in strong rust prevention, strength, and element resistance.
Example
We provide supports for Large Road signs, traffic signs, traffic lights to organizations such as MLIT, Expressway Companies, local municipalities and Prefectural Road Managing Companies, as well as design and coating of materials while considering landscape.
Example：F -Shape
Example：WF -Shape
Example：Arch Gate ShapeWe manufacture and sell metal fixtures such as clamps for attaching large traffic signs to support beams,
clamp fixtures to connect guardrails to sign posts, and fixtures for pedestrian bridges.
We can manufacture and suggest designs suitable to the current status of the existing fixtures.
Example
Example
Joint ShapesOur noise barrier material range includes unified type panels, transparent panels for sunlight, camouflaged panels that cover the back
in colored plates for it blend into the background.
We also provide order made supports and pipe piles.
Example
At our design section, we create strength calculation sheet and drawing for
a variety of items supports such as large and small scale sign supports and metal fixtures.
Our designs and specifications are approved by organizations such as MLIT, Expressway Companies,
local municipalities and Prefectural Road Managing Companies
We also use 3D CAD in our design, which compared to 2D, enables us to see at an in depth scale
as well as check the range of motion by each part.
In addition, we can calculate each part by the exact scale using the CAE analysis.
(CAE Analysis・・・a technique on the computer to calculate and simulate the wind load on each area)
By using new technology, we strive to perfect our technique .
Before painting
Electrostatic Powder Coating
After painting(roadside)
After painting(convex mirror)
Degreasing
Flux Processing
Galvanizing
Galvanizing
Welding
Temporary Welding and Building
Inspection
Galvanizing
painting

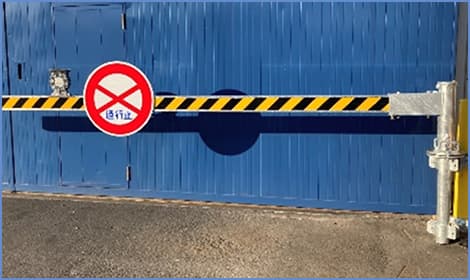

Temporary Traffic Barriers
We design and manufacture temporary traffic barriers for use in disasters, flooding, or blocking off construction sites.
These are wind resistant up to 40m/s, and can be installed alone without secondary supports.
Barriers for Irregular Areas outside of the standard embedding type can also be manufactured / designed.
